Factory Lead Time

12 Weeks

Mounting Type

Through Hole

Package / Case

6-DIP Module

Weight

30g

Voltage - Input (Nom)

110V

Power Dissipation (Max)

20W

Operating Temperature

-40°C~79°C

Packaging

Tube

Series

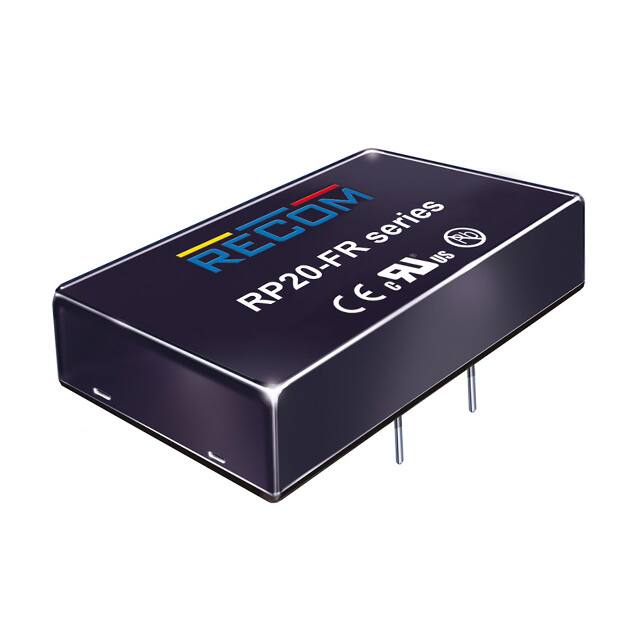

POWERLINE RP20-FR (20W)

Size / Dimension

2.00Lx1.00W x 0.40 H 50.8mmx25.4mmx10.2mm

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

6

Type

Isolated Module

Applications

ITE (Commercial), Railway

Terminal Position

DUAL

Terminal Form

PIN/PEG

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Number of Functions

1

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

JESD-30 Code

R-XDMA-P6

Number of Outputs

2

Efficiency

88%

Voltage - Isolation

1.6kV

Voltage - Input (Max)

160V

Voltage - Input (Min)

43V

Trim/Adjustable Output

NO

Current - Output (Max)

833mA

Current - Output

833mA

Output Power

20W

Control Features

Enable, Active High

Max Output Voltage

12V

Voltage - Output

12V

Voltage - Output 2

-12V

Features

Remote On/Off, OCP, OVP, SCP, UVLO

Height

10.2mm

Length

50.8mm

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
